Modular Plus Series

M+ 20K

MODEL	M+ 20K
TOTAL CAPACITY *	20KW
UPS POWER MODULES	1
PHASE	3-Phase in / 3-Phase out
INPUT
NORMINAL VOLTAGE	3 x 380VAC / 400VAC / 415VAC ( 3Ph+N )
VOLTAGE RANGE	305 ~ 478VAC @ Full Load; 208 ~ 478VAC @ <70% Load
NOMINAL FREQUENCY	50 or 60Hz ( Auto-Sensing )
FREQUENCY RANGE	40Hz ~ 70Hz
INPUT POWER FACTOR	0.99 @ 100% Load, >0.98 @ 50% Load
HARMONIC DISTORTION (THDi)	<3% @ 100% Load
OUTPUT
NOMINAL VOLTAGE	3 x 380VAC / 400VAC / 415VAC ( 3Ph+N )
OUTPUT POWER FACTOR	1.0
VOLTAGE REGULATION	≤±1% Typical ( balanced load ); ≤±2% Typical ( unbalanced load )
NOMINAL FREQUENCY	50 or 60Hz
FREQUENCY RANGE (Synchronized)	46Hz ~ 54Hz or 56Hz ~ 64Hz
OVERLOAD CAPACITY	1 Hour for 110%, 10mins for 125%; 1min for 150%, 200ms for > 150%
HARMONIC DISTORTION	≤2% THD ( Linear Load ); ≤4% THD ( Non-Linear Load )
EFFICIENCY	Up to 96%
BATTERY CHARGER
NOMINAL VOLTAGE	+/-216V ( 12V x 36pcs )
MAXIMUM VOLTAGE	+/-240V ( 12V x 40pcs )
MINIMIUM VOLTAGE	+/-192V ( 12V x 32pcs )
FLOAT CHARGING VOLTAGE	2.25V / Cell
BOOST CHARGING VOLTAGE	2.35V / Cell
TEMPERATURE COMPENSATION	Yes
MAXIMUM CHARGING CURRENT	8A for each power module ( User-adjustable )
STATUS INDICATOR
LCD DISPLAY	M+Chasis - 10" Touch LCD Panel
LCD DISPLAY	M+R Chassis - 5.7" Graphic LCD Panel
COMMUNICATION
POWER MANAGEMENT SOFTWARE	Support Windows Family, Linus & MAC
INTERFACE	RS 232 / USB Port
SNMP SLOT	Yes
ENVIRONMENT
OPERATION TEMPERATURE	0 - 40℃
RELATIVE HUMIDITY	0 - 95% non-condensing
ALTITUDE	<1000m for Nominal Power
IP CLASS	IP 20
STANDARDS
SAFETY	IEC / EN 60950 - 1; IEC / EN 62040 - 1
EMC	IEC / EN 62040 - 2 Category C3

M+ 40K

MODEL	M+ 40K
TOTAL CAPACITY *	40KW
UPS POWER MODULES	2
PHASE	3-Phase in / 3-Phase out
INPUT
NORMINAL VOLTAGE	3 x 380VAC / 400VAC / 415VAC ( 3Ph+N )
VOLTAGE RANGE	305 ~ 478VAC @ Full Load; 208 ~ 478VAC @ <70% Load
NOMINAL FREQUENCY	50 or 60Hz ( Auto-Sensing )
FREQUENCY RANGE	40Hz ~ 70Hz
INPUT POWER FACTOR	0.99 @ 100% Load, >0.98 @ 50% Load
HARMONIC DISTORTION (THDi)	<3% @ 100% Load
OUTPUT
NOMINAL VOLTAGE	3 x 380VAC / 400VAC / 415VAC ( 3Ph+N )
OUTPUT POWER FACTOR	1.0
VOLTAGE REGULATION	≤±1% Typical ( balanced load ); ≤±2% Typical ( unbalanced load )
NOMINAL FREQUENCY	50 or 60Hz
FREQUENCY RANGE (Synchronized)	46Hz ~ 54Hz or 56Hz ~ 64Hz
OVERLOAD CAPACITY	1 Hour for 110%, 10mins for 125%; 1min for 150%, 200ms for > 150%
HARMONIC DISTORTION	≤2% THD ( Linear Load ); ≤4% THD ( Non-Linear Load )
EFFICIENCY	Up to 96%
BATTERY CHARGER
NOMINAL VOLTAGE	+/-216V ( 12V x 36pcs )
MAXIMUM VOLTAGE	+/-240V ( 12V x 40pcs )
MINIMIUM VOLTAGE	+/-192V ( 12V x 32pcs )
FLOAT CHARGING VOLTAGE	2.25V / Cell
BOOST CHARGING VOLTAGE	2.35V / Cell
TEMPERATURE COMPENSATION	Yes
MAXIMUM CHARGING CURRENT	8A for each power module ( User-adjustable )
STATUS INDICATOR
LCD DISPLAY	M+Chasis - 10" Touch LCD Panel
LCD DISPLAY	M+R Chassis - 5.7" Graphic LCD Panel
COMMUNICATION
POWER MANAGEMENT SOFTWARE	Support Windows Family, Linus & MAC
INTERFACE	RS 232 / USB Port
SNMP SLOT	Yes
ENVIRONMENT
OPERATION TEMPERATURE	0 - 40℃
RELATIVE HUMIDITY	0 - 95% non-condensing
ALTITUDE	<1000m for Nominal Power
IP CLASS	IP 20
STANDARDS
SAFETY	IEC / EN 60950 - 1; IEC / EN 62040 - 1
EMC	IEC / EN 62040 - 2 Category C3

Edit Table

M+ 60K

MODEL	M+ 60K
TOTAL CAPACITY *	60KW
UPS POWER MODULES	3
PHASE	3-Phase in / 3-Phase out
INPUT
NORMINAL VOLTAGE	3 x 380VAC / 400VAC / 415VAC ( 3Ph+N )
VOLTAGE RANGE	305 ~ 478VAC @ Full Load; 208 ~ 478VAC @ <70% Load
NOMINAL FREQUENCY	50 or 60Hz ( Auto-Sensing )
FREQUENCY RANGE	40Hz ~ 70Hz
INPUT POWER FACTOR	0.99 @ 100% Load, >0.98 @ 50% Load
HARMONIC DISTORTION (THDi)	<3% @ 100% Load
OUTPUT
NOMINAL VOLTAGE	3 x 380VAC / 400VAC / 415VAC ( 3Ph+N )
OUTPUT POWER FACTOR	1.0
VOLTAGE REGULATION	≤±1% Typical ( balanced load ); ≤±2% Typical ( unbalanced load )
NOMINAL FREQUENCY	50 or 60Hz
FREQUENCY RANGE (Synchronized)	46Hz ~ 54Hz or 56Hz ~ 64Hz
OVERLOAD CAPACITY	1 Hour for 110%, 10mins for 125%; 1min for 150%, 200ms for > 150%
HARMONIC DISTORTION	≤2% THD ( Linear Load ); ≤4% THD ( Non-Linear Load )
EFFICIENCY	Up to 96%
BATTERY CHARGER
NOMINAL VOLTAGE	+/-216V ( 12V x 36pcs )
MAXIMUM VOLTAGE	+/-240V ( 12V x 40pcs )
MINIMIUM VOLTAGE	+/-192V ( 12V x 32pcs )
FLOAT CHARGING VOLTAGE	2.25V / Cell
BOOST CHARGING VOLTAGE	2.35V / Cell
TEMPERATURE COMPENSATION	Yes
MAXIMUM CHARGING CURRENT	8A for each power module ( User-adjustable )
STATUS INDICATOR
LCD DISPLAY	M+Chasis - 10" Touch LCD Panel
LCD DISPLAY	M+R Chassis - 5.7" Graphic LCD Panel
COMMUNICATION
POWER MANAGEMENT SOFTWARE	Support Windows Family, Linus & MAC
INTERFACE	RS 232 / USB Port
SNMP SLOT	Yes
ENVIRONMENT
OPERATION TEMPERATURE	0 - 40℃
RELATIVE HUMIDITY	0 - 95% non-condensing
ALTITUDE	<1000m for Nominal Power
IP CLASS	IP 20
STANDARDS
SAFETY	IEC / EN 60950 - 1; IEC / EN 62040 - 1
EMC	IEC / EN 62040 - 2 Category C3

M+ 80K

MODEL	M+ 80K
TOTAL CAPACITY *	80KW
UPS POWER MODULES	4
PHASE	3-Phase in / 3-Phase out
INPUT
NORMINAL VOLTAGE	3 x 380VAC / 400VAC / 415VAC ( 3Ph+N )
VOLTAGE RANGE	305 ~ 478VAC @ Full Load; 208 ~ 478VAC @ <70% Load
NOMINAL FREQUENCY	50 or 60Hz ( Auto-Sensing )
FREQUENCY RANGE	40Hz ~ 70Hz
INPUT POWER FACTOR	0.99 @ 100% Load, >0.98 @ 50% Load
HARMONIC DISTORTION (THDi)	<3% @ 100% Load
OUTPUT
NOMINAL VOLTAGE	3 x 380VAC / 400VAC / 415VAC ( 3Ph+N )
OUTPUT POWER FACTOR	1.0
VOLTAGE REGULATION	≤±1% Typical ( balanced load ); ≤±2% Typical ( unbalanced load )
NOMINAL FREQUENCY	50 or 60Hz
FREQUENCY RANGE (Synchronized)	46Hz ~ 54Hz or 56Hz ~ 64Hz
OVERLOAD CAPACITY	1 Hour for 110%, 10mins for 125%; 1min for 150%, 200ms for > 150%
HARMONIC DISTORTION	≤2% THD ( Linear Load ); ≤4% THD ( Non-Linear Load )
EFFICIENCY	Up to 96%
BATTERY CHARGER
NOMINAL VOLTAGE	+/-216V ( 12V x 36pcs )
MAXIMUM VOLTAGE	+/-240V ( 12V x 40pcs )
MINIMIUM VOLTAGE	+/-192V ( 12V x 32pcs )
FLOAT CHARGING VOLTAGE	2.25V / Cell
BOOST CHARGING VOLTAGE	2.35V / Cell
TEMPERATURE COMPENSATION	Yes
MAXIMUM CHARGING CURRENT	8A for each power module ( User-adjustable )
STATUS INDICATOR
LCD DISPLAY	M+Chasis - 10" Touch LCD Panel
LCD DISPLAY	M+R Chassis - 5.7" Graphic LCD Panel
COMMUNICATION
POWER MANAGEMENT SOFTWARE	Support Windows Family, Linus & MAC
INTERFACE	RS 232 / USB Port
SNMP SLOT	Yes
ENVIRONMENT
OPERATION TEMPERATURE	0 - 40℃
RELATIVE HUMIDITY	0 - 95% non-condensing
ALTITUDE	<1000m for Nominal Power
IP CLASS	IP 20
STANDARDS
SAFETY	IEC / EN 60950 - 1; IEC / EN 62040 - 1
EMC	IEC / EN 62040 - 2 Category C3

M+ 100K

MODEL	M+ 100K
TOTAL CAPACITY *	100KW
UPS POWER MODULES	5
PHASE	3-Phase in / 3-Phase out
INPUT
NORMINAL VOLTAGE	3 x 380VAC / 400VAC / 415VAC ( 3Ph+N )
VOLTAGE RANGE	305 ~ 478VAC @ Full Load; 208 ~ 478VAC @ <70% Load
NOMINAL FREQUENCY	50 or 60Hz ( Auto-Sensing )
FREQUENCY RANGE	40Hz ~ 70Hz
INPUT POWER FACTOR	0.99 @ 100% Load, >0.98 @ 50% Load
HARMONIC DISTORTION (THDi)	<3% @ 100% Load
OUTPUT
NOMINAL VOLTAGE	3 x 380VAC / 400VAC / 415VAC ( 3Ph+N )
OUTPUT POWER FACTOR	1.0
VOLTAGE REGULATION	≤±1% Typical ( balanced load ); ≤±2% Typical ( unbalanced load )
NOMINAL FREQUENCY	50 or 60Hz
FREQUENCY RANGE (Synchronized)	46Hz ~ 54Hz or 56Hz ~ 64Hz
OVERLOAD CAPACITY	1 Hour for 110%, 10mins for 125%; 1min for 150%, 200ms for > 150%
HARMONIC DISTORTION	≤2% THD ( Linear Load ); ≤4% THD ( Non-Linear Load )
EFFICIENCY	Up to 96%
BATTERY CHARGER
NOMINAL VOLTAGE	+/-216V ( 12V x 36pcs )
MAXIMUM VOLTAGE	+/-240V ( 12V x 40pcs )
MINIMIUM VOLTAGE	+/-192V ( 12V x 32pcs )
FLOAT CHARGING VOLTAGE	2.25V / Cell
BOOST CHARGING VOLTAGE	2.35V / Cell
TEMPERATURE COMPENSATION	Yes
MAXIMUM CHARGING CURRENT	8A for each power module ( User-adjustable )
STATUS INDICATOR
LCD DISPLAY	M+Chasis - 10" Touch LCD Panel
LCD DISPLAY	M+R Chassis - 5.7" Graphic LCD Panel
COMMUNICATION
POWER MANAGEMENT SOFTWARE	Support Windows Family, Linus & MAC
INTERFACE	RS 232 / USB Port
SNMP SLOT	Yes
ENVIRONMENT
OPERATION TEMPERATURE	0 - 40℃
RELATIVE HUMIDITY	0 - 95% non-condensing
ALTITUDE	<1000m for Nominal Power
IP CLASS	IP 20
STANDARDS
SAFETY	IEC / EN 60950 - 1; IEC / EN 62040 - 1
EMC	IEC / EN 62040 - 2 Category C3

M+ 120K

MODEL	M+ 120K
TOTAL CAPACITY *	120KW
UPS POWER MODULES	6
PHASE	3-Phase in / 3-Phase out
INPUT
NORMINAL VOLTAGE	3 x 380VAC / 400VAC / 415VAC ( 3Ph+N )
VOLTAGE RANGE	305 ~ 478VAC @ Full Load; 208 ~ 478VAC @ <70% Load
NOMINAL FREQUENCY	50 or 60Hz ( Auto-Sensing )
FREQUENCY RANGE	40Hz ~ 70Hz
INPUT POWER FACTOR	0.99 @ 100% Load, >0.98 @ 50% Load
HARMONIC DISTORTION (THDi)	<3% @ 100% Load
OUTPUT
NOMINAL VOLTAGE	3 x 380VAC / 400VAC / 415VAC ( 3Ph+N )
OUTPUT POWER FACTOR	1.0
VOLTAGE REGULATION	≤±1% Typical ( balanced load ); ≤±2% Typical ( unbalanced load )
NOMINAL FREQUENCY	50 or 60Hz
FREQUENCY RANGE (Synchronized)	46Hz ~ 54Hz or 56Hz ~ 64Hz
OVERLOAD CAPACITY	1 Hour for 110%, 10mins for 125%; 1min for 150%, 200ms for > 150%
HARMONIC DISTORTION	≤2% THD ( Linear Load ); ≤4% THD ( Non-Linear Load )
EFFICIENCY	Up to 96%
BATTERY CHARGER
NOMINAL VOLTAGE	+/-216V ( 12V x 36pcs )
MAXIMUM VOLTAGE	+/-240V ( 12V x 40pcs )
MINIMIUM VOLTAGE	+/-192V ( 12V x 32pcs )
FLOAT CHARGING VOLTAGE	2.25V / Cell
BOOST CHARGING VOLTAGE	2.35V / Cell
TEMPERATURE COMPENSATION	Yes
MAXIMUM CHARGING CURRENT	8A for each power module ( User-adjustable )
STATUS INDICATOR
LCD DISPLAY	M+Chasis - 10" Touch LCD Panel
LCD DISPLAY	M+R Chassis - 5.7" Graphic LCD Panel
COMMUNICATION
POWER MANAGEMENT SOFTWARE	Support Windows Family, Linus & MAC
INTERFACE	RS 232 / USB Port
SNMP SLOT	Yes
ENVIRONMENT
OPERATION TEMPERATURE	0 - 40℃
RELATIVE HUMIDITY	0 - 95% non-condensing
ALTITUDE	<1000m for Nominal Power
IP CLASS	IP 20
STANDARDS
SAFETY	IEC / EN 60950 - 1; IEC / EN 62040 - 1
EMC	IEC / EN 62040 - 2 Category C3

M+ 140K

MODEL	M+ 140K
TOTAL CAPACITY *	140KW
UPS POWER MODULES	7
PHASE	3-Phase in / 3-Phase out
INPUT
NORMINAL VOLTAGE	3 x 380VAC / 400VAC / 415VAC ( 3Ph+N )
VOLTAGE RANGE	305 ~ 478VAC @ Full Load; 208 ~ 478VAC @ <70% Load
NOMINAL FREQUENCY	50 or 60Hz ( Auto-Sensing )
FREQUENCY RANGE	40Hz ~ 70Hz
INPUT POWER FACTOR	0.99 @ 100% Load, >0.98 @ 50% Load
HARMONIC DISTORTION (THDi)	<3% @ 100% Load
OUTPUT
NOMINAL VOLTAGE	3 x 380VAC / 400VAC / 415VAC ( 3Ph+N )
OUTPUT POWER FACTOR	1.0
VOLTAGE REGULATION	≤±1% Typical ( balanced load ); ≤±2% Typical ( unbalanced load )
NOMINAL FREQUENCY	50 or 60Hz
FREQUENCY RANGE (Synchronized)	46Hz ~ 54Hz or 56Hz ~ 64Hz
OVERLOAD CAPACITY	1 Hour for 110%, 10mins for 125%; 1min for 150%, 200ms for > 150%
HARMONIC DISTORTION	≤2% THD ( Linear Load ); ≤4% THD ( Non-Linear Load )
EFFICIENCY	Up to 96%
BATTERY CHARGER
NOMINAL VOLTAGE	+/-216V ( 12V x 36pcs )
MAXIMUM VOLTAGE	+/-240V ( 12V x 40pcs )
MINIMIUM VOLTAGE	+/-192V ( 12V x 32pcs )
FLOAT CHARGING VOLTAGE	2.25V / Cell
BOOST CHARGING VOLTAGE	2.35V / Cell
TEMPERATURE COMPENSATION	Yes
MAXIMUM CHARGING CURRENT	8A for each power module ( User-adjustable )
STATUS INDICATOR
LCD DISPLAY	M+Chasis - 10" Touch LCD Panel
LCD DISPLAY	M+R Chassis - 5.7" Graphic LCD Panel
COMMUNICATION
POWER MANAGEMENT SOFTWARE	Support Windows Family, Linus & MAC
INTERFACE	RS 232 / USB Port
SNMP SLOT	Yes
ENVIRONMENT
OPERATION TEMPERATURE	0 - 40℃
RELATIVE HUMIDITY	0 - 95% non-condensing
ALTITUDE	<1000m for Nominal Power
IP CLASS	IP 20
STANDARDS
SAFETY	IEC / EN 60950 - 1; IEC / EN 62040 - 1
EMC	IEC / EN 62040 - 2 Category C3

M+ 160K

MODEL	M+ 160K
TOTAL CAPACITY* (KWATTS)	160KW
UPS POWER MODULES	8
PHASE	3-Phase in / 3-phase out
INPUT
NOMINAL VOLTAGE	3 x 380VAC/400VAC/415VAC (3Ph+N)
VOLTAGE RANGE	305 ~ 478VAC @ Full load; 208 ~ 478VAC @ <70% Load
NOMINAL FREQUENCY	50 or 60Hz (Auto-Sensing)
FREQUENCY RANGE	40Hz ~ 70Hz
INPUT POWER FACTOR	>0.99 @ 100% Load , >0.98 @ 50% Load
HARMONIC DISTORTION (THDi)	< 3% @ 100% Load
OUTPUT
NOMINAL VOLTAGE	3 x 380VAC/400VAC/415VAC (3Ph+N)
OUTPUT POWER FACTOR	1.0
VOLTAGE REGULATION	≤ ±1% Typical (balanced load) ; ≤ ±2% Typical (unbalanced load)
NOMINAL FREQUENCY	50 or 60Hz
FREQUENCY RANGE (SYNCHRONIZED)	46Hz ~ 54Hz or 56Hz ~ 64Hz
OVERLOAD CAPACITY	1 Hour for 110%, 10mins for 125% ; 1min for 150%, 200ms for >150%
HARMONIC DISTORTION	≤ 2% THD (Linear Load) ; ≤ 4% THD (Non-Linear Load)
EFFICIENCY	Up to 96%
BATTERY CHARGER
NOMINAL VOLTAGE	+/-216V (12V x 36pcs)
MAXIMUM VOLTAGE	+/-240V (12V x 40pcs)
MINIMIUM VOLTAGE	+/-192V (12V x 32pcs)
FLOAT CHARGING VOLTAGE	2.25V/Cell
BOOST CHARGING VOLTAGE	2.35V/Cell
TEMPERATURE COMPENSATION	Yes
MAXIMUM CHARGING CURRENT	8A for each power module (User-adjustable)
STATUS INDICATION
LCD DISPLAY	M+Chasis - 10" Touch LCD Panel
LCD DISPLAY	M+R Chassis - 5.7" Graphic LCD Panel
COMMUNICATION
POWER MANAGEMENT SOFTWARE	Support Window Family, Linux & MAC
INTERFACE	RS 232 / USB Port
SNMP Slot	Yes
ENVIRONMENT
OPERATION TEMPERATURE	0 - 40°c
RELATIVE HUMIDITY	0 - 95% non-condensing
ALTITUDE	<1000m for Nominal Power
IP CLASS	IP 20
STANDARDS
SAFETY	IEC/EN 60950-1 ; IEC/EN 62040-1
EMC	IEC/EN 62040-2 Category C3

M+180K

MODEL	M+ 180K
TOTAL CAPACITY* (KWATTS)	180KW
UPS POWER MODULES	9
PHASE	3-Phase in / 3-phase out
INPUT
NOMINAL VOLTAGE	3 x 380VAC/400VAC/415VAC (3Ph+N)
VOLTAGE RANGE	305 ~ 478VAC @ Full load; 208 ~ 478VAC @ <70% Load
NOMINAL FREQUENCY	50 or 60Hz (Auto-Sensing)
FREQUENCY RANGE	40Hz ~ 70Hz
INPUT POWER FACTOR	>0.99 @ 100% Load , >0.98 @ 50% Load
HARMONIC DISTORTION (THDi)	< 3% @ 100% Load
OUTPUT
NOMINAL VOLTAGE	3 x 380VAC/400VAC/415VAC (3Ph+N)
OUTPUT POWER FACTOR	1.0
VOLTAGE REGULATION	≤ ±1% Typical (balanced load) ; ≤ ±2% Typical (unbalanced load)
NOMINAL FREQUENCY	50 or 60Hz
FREQUENCY RANGE (SYNCHRONIZED)	46Hz ~ 54Hz or 56Hz ~ 64Hz
OVERLOAD CAPACITY	1 Hour for 110%, 10mins for 125% ; 1min for 150%, 200ms for >150%
HARMONIC DISTORTION	≤ 2% THD (Linear Load) ; ≤ 4% THD (Non-Linear Load)
EFFICIENCY	Up to 96%
BATTERY CHARGER
NOMINAL VOLTAGE	+/-216V (12V x 36pcs)
MAXIMUM VOLTAGE	+/-240V (12V x 40pcs)
MINIMIUM VOLTAGE	+/-192V (12V x 32pcs)
FLOAT CHARGING VOLTAGE	2.25V/Cell
BOOST CHARGING VOLTAGE	2.35V/Cell
TEMPERATURE COMPENSATION	Yes
MAXIMUM CHARGING CURRENT	8A for each power module (User-adjustable)
STATUS INDICATION
LCD DISPLAY	M+Chasis - 10" Touch LCD Panel
LCD DISPLAY	M+R Chassis - 5.7" Graphic LCD Panel
COMMUNICATION
POWER MANAGEMENT SOFTWARE	Support Window Family, Linux & MAC
INTERFACE	RS 232 / USB Port
SNMP Slot	Yes
ENVIRONMENT
OPERATION TEMPERATURE	0 - 40°c
RELATIVE HUMIDITY	0 - 95% non-condensing
ALTITUDE	<1000m for Nominal Power
IP CLASS	IP 20
STANDARDS
SAFETY	IEC/EN 60950-1 ; IEC/EN 62040-1
EMC	IEC/EN 62040-2 Category C3

M+ 200K

MODEL	M+ 200K
TOTAL CAPACITY *	200KW
UPS POWER MODULES	10
PHASE	3-Phase in / 3-Phase out
INPUT
NORMINAL VOLTAGE	3 x 380VAC / 400VAC / 415VAC ( 3Ph+N )
VOLTAGE RANGE	305 ~ 478VAC @ Full Load; 208 ~ 478VAC @ <70% Load
NOMINAL FREQUENCY	50 or 60Hz ( Auto-Sensing )
FREQUENCY RANGE	40Hz ~ 70Hz
INPUT POWER FACTOR	0.99 @ 100% Load, >0.98 @ 50% Load
HARMONIC DISTORTION (THDi)	<3% @ 100% Load
OUTPUT
NOMINAL VOLTAGE	3 x 380VAC / 400VAC / 415VAC ( 3Ph+N )
OUTPUT POWER FACTOR	1.0
VOLTAGE REGULATION	≤±1% Typical ( balanced load ); ≤±2% Typical ( unbalanced load )
NOMINAL FREQUENCY	50 or 60Hz
FREQUENCY RANGE (Synchronized)	46Hz ~ 54Hz or 56Hz ~ 64Hz
OVERLOAD CAPACITY	1 Hour for 110%, 10mins for 125%; 1min for 150%, 200ms for > 150%
HARMONIC DISTORTION	≤2% THD ( Linear Load ); ≤4% THD ( Non-Linear Load )
EFFICIENCY	Up to 96%
BATTERY CHARGER
NOMINAL VOLTAGE	+/-216V ( 12V x 36pcs )
MAXIMUM VOLTAGE	+/-240V ( 12V x 40pcs )
MINIMIUM VOLTAGE	+/-192V ( 12V x 32pcs )
FLOAT CHARGING VOLTAGE	2.25V / Cell
BOOST CHARGING VOLTAGE	2.35V / Cell
TEMPERATURE COMPENSATION	Yes
MAXIMUM CHARGING CURRENT	8A for each power module ( User-adjustable )
STATUS INDICATOR
LCD DISPLAY	M+Chasis - 10" Touch LCD Panel
LCD DISPLAY	M+R Chassis - 5.7" Graphic LCD Panel
COMMUNICATION
POWER MANAGEMENT SOFTWARE	Support Windows Family, Linus & MAC
INTERFACE	RS 232 / USB Port
SNMP SLOT	Yes
ENVIRONMENT
OPERATION TEMPERATURE	0 - 40℃
RELATIVE HUMIDITY	0 - 95% non-condensing
ALTITUDE	<1000m for Nominal Power
IP CLASS	IP 20
STANDARDS
SAFETY	IEC / EN 60950 - 1; IEC / EN 62040 - 1
EMC	IEC / EN 62040 - 2 Category C3

M+ 30K

MODEL	M+ 30K
TOTAL CAPACITY *	30KW
UPS POWER MODULES	1
PHASE	3-Phase in / 3-Phase out
INPUT
NORMINAL VOLTAGE	3 x 380VAC / 400VAC / 415VAC ( 3Ph+N )
VOLTAGE RANGE	305 ~ 478VAC @ Full Load; 208 ~ 478VAC @ <70% Load
NOMINAL FREQUENCY	50 or 60Hz ( Auto-Sensing )
FREQUENCY RANGE	40Hz ~ 70Hz
INPUT POWER FACTOR	0.99 @ 100% Load, >0.98 @ 50% Load
HARMONIC DISTORTION (THDi)	<3% @ 100% Load
OUTPUT
NOMINAL VOLTAGE	3 x 380VAC / 400VAC / 415VAC ( 3Ph+N )
OUTPUT POWER FACTOR	1.0
VOLTAGE REGULATION (Steady State)	≤±1% Typical ( balanced load ); ≤±2% Typical ( unbalanced load )
NOMINAL FREQUENCY	50 or 60Hz
FREQUENCY RANGE (Synchronized)	46Hz ~ 54Hz or 56Hz ~ 64Hz
OVERLOAD CAPACITY	1 Hour for 110%, 10mins for 125%; 1min for 150%, 200ms for > 150%
HARMONIC DISTORTION	≤2% THD ( Linear Load ); ≤4% THD ( Non-Linear Load )
EFFICIENCY	Up to 96%
BATTERY CHARGER
NOMINAL VOLTAGE	+/-216V ( 12V x 36pcs )
MAXIMUM VOLTAGE	+/-240V ( 12V x 40pcs )
MINIMIUM VOLTAGE	+/-192V ( 12V x 32pcs )
FLOAT CHARGING VOLTAGE	2.25V / Cell
BOOST CHARGING VOLTAGE	2.35V / Cell
TEMPERATURE COMPENSATION	Yes
MAXIMUM CHARGING CURRENT	8A for each power module ( User-adjustable )
STATUS INDICATOR
LCD DISPLAY	Optional 10" Touch LCD Panel
COMMUNICATION
POWER MANAGEMENT SOFTWARE	Support Windows Family, Linus & MAC
INTERFACE	RS 232 / USB Port
SNMP SLOT	Yes
ENVIRONMENT
OPERATION TEMPERATURE	0 - 40℃
RELATIVE HUMIDITY	0 - 95% non-condensing
ALTITUDE	<1000m for Nominal Power
IP CLASS	IP 20
STANDARDS
SAFETY	IEC / EN 60950 - 1; IEC / EN 62040 - 1
EMC	IEC / EN 62040 - 2 Category C3

M+ 60K ( 60KW )

MODEL	M+ 60K
TOTAL CAPACITY *	60KW
UPS POWER MODULES	2
PHASE	3-Phase in / 3-Phase out
INPUT
NORMINAL VOLTAGE	3 x 380VAC / 400VAC / 415VAC ( 3Ph+N )
VOLTAGE RANGE	305 ~ 478VAC @ Full Load; 208 ~ 478VAC @ <70% Load
NOMINAL FREQUENCY	50 or 60Hz ( Auto-Sensing )
FREQUENCY RANGE	40Hz ~ 70Hz
INPUT POWER FACTOR	0.99 @ 100% Load, >0.98 @ 50% Load
HARMONIC DISTORTION (THDi)	<3% @ 100% Load
OUTPUT
NOMINAL VOLTAGE	3 x 380VAC / 400VAC / 415VAC ( 3Ph+N )
OUTPUT POWER FACTOR	1.0
VOLTAGE REGULATION (Steady State)	≤±1% Typical ( balanced load ); ≤±2% Typical ( unbalanced load )
NOMINAL FREQUENCY	50 or 60Hz
FREQUENCY RANGE (Synchronized)	46Hz ~ 54Hz or 56Hz ~ 64Hz
OVERLOAD CAPACITY	1 Hour for 110%, 10mins for 125%; 1min for 150%, 200ms for > 150%
HARMONIC DISTORTION	≤2% THD ( Linear Load ); ≤4% THD ( Non-Linear Load )
EFFICIENCY	Up to 96%
BATTERY CHARGER
NOMINAL VOLTAGE	+/-216V ( 12V x 36pcs )
MAXIMUM VOLTAGE	+/-240V ( 12V x 40pcs )
MINIMIUM VOLTAGE	+/-192V ( 12V x 32pcs )
FLOAT CHARGING VOLTAGE	2.25V / Cell
BOOST CHARGING VOLTAGE	2.35V / Cell
TEMPERATURE COMPENSATION	Yes
MAXIMUM CHARGING CURRENT	8A for each power module ( User-adjustable )
STATUS INDICATOR
LCD DISPLAY	Optional 10" Touch LCD Panel
COMMUNICATION
POWER MANAGEMENT SOFTWARE	Support Windows Family, Linus & MAC
INTERFACE	RS 232 / USB Port
SNMP SLOT	Yes
ENVIRONMENT
OPERATION TEMPERATURE	0 - 40℃
RELATIVE HUMIDITY	0 - 95% non-condensing
ALTITUDE	<1000m for Nominal Power
IP CLASS	IP 20
STANDARDS
SAFETY	IEC / EN 60950 - 1; IEC / EN 62040 - 1
EMC	IEC / EN 62040 - 2 Category C3

M+ 90K

MODEL	M+ 90K
TOTAL CAPACITY *	90KW
UPS POWER MODULES	3
PHASE	3-Phase in / 3-Phase out
INPUT
NORMINAL VOLTAGE	3 x 380VAC / 400VAC / 415VAC ( 3Ph+N )
VOLTAGE RANGE	305 ~ 478VAC @ Full Load; 208 ~ 478VAC @ <70% Load
NOMINAL FREQUENCY	50 or 60Hz ( Auto-Sensing )
FREQUENCY RANGE	40Hz ~ 70Hz
INPUT POWER FACTOR	0.99 @ 100% Load, >0.98 @ 50% Load
HARMONIC DISTORTION (THDi)	<3% @ 100% Load
OUTPUT
NOMINAL VOLTAGE	3 x 380VAC / 400VAC / 415VAC ( 3Ph+N )
OUTPUT POWER FACTOR	1.0
VOLTAGE REGULATION (Steady State)	≤±1% Typical ( balanced load ); ≤±2% Typical ( unbalanced load )
NOMINAL FREQUENCY	50 or 60Hz
FREQUENCY RANGE (Synchronized)	46Hz ~ 54Hz or 56Hz ~ 64Hz
OVERLOAD CAPACITY	1 Hour for 110%, 10mins for 125%; 1min for 150%, 200ms for > 150%
HARMONIC DISTORTION	≤2% THD ( Linear Load ); ≤4% THD ( Non-Linear Load )
EFFICIENCY	Up to 96%
BATTERY CHARGER
NOMINAL VOLTAGE	+/-216V ( 12V x 36pcs )
MAXIMUM VOLTAGE	+/-240V ( 12V x 40pcs )
MINIMIUM VOLTAGE	+/-192V ( 12V x 32pcs )
FLOAT CHARGING VOLTAGE	2.25V / Cell
BOOST CHARGING VOLTAGE	2.35V / Cell
TEMPERATURE COMPENSATION	Yes
MAXIMUM CHARGING CURRENT	8A for each power module ( User-adjustable )
STATUS INDICATOR
LCD DISPLAY	Optional 10" Touch LCD Panel
COMMUNICATION
POWER MANAGEMENT SOFTWARE	Support Windows Family, Linus & MAC
INTERFACE	RS 232 / USB Port
SNMP SLOT	Yes
ENVIRONMENT
OPERATION TEMPERATURE	0 - 40℃
RELATIVE HUMIDITY	0 - 95% non-condensing
ALTITUDE	<1000m for Nominal Power
IP CLASS	IP 20
STANDARDS
SAFETY	IEC / EN 60950 - 1; IEC / EN 62040 - 1
EMC	IEC / EN 62040 - 2 Category C3

M+ 120K ( 120KW )

MODEL	M+ 120K
TOTAL CAPACITY *	120KW
UPS POWER MODULES	4
PHASE	3-Phase in / 3-Phase out
INPUT
NORMINAL VOLTAGE	3 x 380VAC / 400VAC / 415VAC ( 3Ph+N )
VOLTAGE RANGE	305 ~ 478VAC @ Full Load; 208 ~ 478VAC @ <70% Load
NOMINAL FREQUENCY	50 or 60Hz ( Auto-Sensing )
FREQUENCY RANGE	40Hz ~ 70Hz
INPUT POWER FACTOR	0.99 @ 100% Load, >0.98 @ 50% Load
HARMONIC DISTORTION (THDi)	<3% @ 100% Load
OUTPUT
NOMINAL VOLTAGE	3 x 380VAC / 400VAC / 415VAC ( 3Ph+N )
OUTPUT POWER FACTOR	1.0
VOLTAGE REGULATION (Steady State)	≤±1% Typical ( balanced load ); ≤±2% Typical ( unbalanced load )
NOMINAL FREQUENCY	50 or 60Hz
FREQUENCY RANGE (Synchronized)	46Hz ~ 54Hz or 56Hz ~ 64Hz
OVERLOAD CAPACITY	1 Hour for 110%, 10mins for 125%; 1min for 150%, 200ms for > 150%
HARMONIC DISTORTION	≤2% THD ( Linear Load ); ≤4% THD ( Non-Linear Load )
EFFICIENCY	Up to 96%
BATTERY CHARGER
NOMINAL VOLTAGE	+/-216V ( 12V x 36pcs )
MAXIMUM VOLTAGE	+/-240V ( 12V x 40pcs )
MINIMIUM VOLTAGE	+/-192V ( 12V x 32pcs )
FLOAT CHARGING VOLTAGE	2.25V / Cell
BOOST CHARGING VOLTAGE	2.35V / Cell
TEMPERATURE COMPENSATION	Yes
MAXIMUM CHARGING CURRENT	8A for each power module ( User-adjustable )
STATUS INDICATOR
LCD DISPLAY	Optional 10" Touch LCD Panel
COMMUNICATION
POWER MANAGEMENT SOFTWARE	Support Windows Family, Linus & MAC
INTERFACE	RS 232 / USB Port
SNMP SLOT	Yes
ENVIRONMENT
OPERATION TEMPERATURE	0 - 40℃
RELATIVE HUMIDITY	0 - 95% non-condensing
ALTITUDE	<1000m for Nominal Power
IP CLASS	IP 20
STANDARDS
SAFETY	IEC / EN 60950 - 1; IEC / EN 62040 - 1
EMC	IEC / EN 62040 - 2 Category C3

M+ 150K

MODEL	M+ 150K
TOTAL CAPACITY *	150KW
UPS POWER MODULES	5
PHASE	3-Phase in / 3-Phase out
INPUT
NORMINAL VOLTAGE	3 x 380VAC / 400VAC / 415VAC ( 3Ph+N )
VOLTAGE RANGE	305 ~ 478VAC @ Full Load; 208 ~ 478VAC @ <70% Load
NOMINAL FREQUENCY	50 or 60Hz ( Auto-Sensing )
FREQUENCY RANGE	40Hz ~ 70Hz
INPUT POWER FACTOR	0.99 @ 100% Load, >0.98 @ 50% Load
HARMONIC DISTORTION (THDi)	<3% @ 100% Load
OUTPUT
NOMINAL VOLTAGE	3 x 380VAC / 400VAC / 415VAC ( 3Ph+N )
OUTPUT POWER FACTOR	1.0
VOLTAGE REGULATION (Steady State)	≤±1% Typical ( balanced load ); ≤±2% Typical ( unbalanced load )
NOMINAL FREQUENCY	50 or 60Hz
FREQUENCY RANGE (Synchronized)	46Hz ~ 54Hz or 56Hz ~ 64Hz
OVERLOAD CAPACITY	1 Hour for 110%, 10mins for 125%; 1min for 150%, 200ms for > 150%
HARMONIC DISTORTION	≤2% THD ( Linear Load ); ≤4% THD ( Non-Linear Load )
EFFICIENCY	Up to 96%
BATTERY CHARGER
NOMINAL VOLTAGE	+/-216V ( 12V x 36pcs )
MAXIMUM VOLTAGE	+/-240V ( 12V x 40pcs )
MINIMIUM VOLTAGE	+/-192V ( 12V x 32pcs )
FLOAT CHARGING VOLTAGE	2.25V / Cell
BOOST CHARGING VOLTAGE	2.35V / Cell
TEMPERATURE COMPENSATION	Yes
MAXIMUM CHARGING CURRENT	8A for each power module ( User-adjustable )
STATUS INDICATOR
LCD DISPLAY	Optional 10" Touch LCD Panel
COMMUNICATION
POWER MANAGEMENT SOFTWARE	Support Windows Family, Linus & MAC
INTERFACE	RS 232 / USB Port
SNMP SLOT	Yes
ENVIRONMENT
OPERATION TEMPERATURE	0 - 40℃
RELATIVE HUMIDITY	0 - 95% non-condensing
ALTITUDE	<1000m for Nominal Power
IP CLASS	IP 20
STANDARDS
SAFETY	IEC / EN 60950 - 1; IEC / EN 62040 - 1
EMC	IEC / EN 62040 - 2 Category C3

M+ 180K

MODEL	M+ 180K
TOTAL CAPACITY *	180KW
UPS POWER MODULES	6
PHASE	3-Phase in / 3-Phase out
INPUT
NORMINAL VOLTAGE	3 x 380VAC / 400VAC / 415VAC ( 3Ph+N )
VOLTAGE RANGE	305 ~ 478VAC @ Full Load; 208 ~ 478VAC @ <70% Load
NOMINAL FREQUENCY	50 or 60Hz ( Auto-Sensing )
FREQUENCY RANGE	40Hz ~ 70Hz
INPUT POWER FACTOR	0.99 @ 100% Load, >0.98 @ 50% Load
HARMONIC DISTORTION (THDi)	<3% @ 100% Load
OUTPUT
NOMINAL VOLTAGE	3 x 380VAC / 400VAC / 415VAC ( 3Ph+N )
OUTPUT POWER FACTOR	1.0
VOLTAGE REGULATION (Steady State)	≤±1% Typical ( balanced load ); ≤±2% Typical ( unbalanced load )
NOMINAL FREQUENCY	50 or 60Hz
FREQUENCY RANGE (Synchronized)	46Hz ~ 54Hz or 56Hz ~ 64Hz
OVERLOAD CAPACITY	1 Hour for 110%, 10mins for 125%; 1min for 150%, 200ms for > 150%
HARMONIC DISTORTION	≤2% THD ( Linear Load ); ≤4% THD ( Non-Linear Load )
EFFICIENCY	Up to 96%
BATTERY CHARGER
NOMINAL VOLTAGE	+/-216V ( 12V x 36pcs )
MAXIMUM VOLTAGE	+/-240V ( 12V x 40pcs )
MINIMIUM VOLTAGE	+/-192V ( 12V x 32pcs )
FLOAT CHARGING VOLTAGE	2.25V / Cell
BOOST CHARGING VOLTAGE	2.35V / Cell
TEMPERATURE COMPENSATION	Yes
MAXIMUM CHARGING CURRENT	8A for each power module ( User-adjustable )
STATUS INDICATOR
LCD DISPLAY	Optional 10" Touch LCD Panel
COMMUNICATION
POWER MANAGEMENT SOFTWARE	Support Windows Family, Linus & MAC
INTERFACE	RS 232 / USB Port
SNMP SLOT	Yes
ENVIRONMENT
OPERATION TEMPERATURE	0 - 40℃
RELATIVE HUMIDITY	0 - 95% non-condensing
ALTITUDE	<1000m for Nominal Power
IP CLASS	IP 20
STANDARDS
SAFETY	IEC / EN 60950 - 1; IEC / EN 62040 - 1
EMC	IEC / EN 62040 - 2 Category C3

M+ 210K

MODEL	M+ 210K
TOTAL CAPACITY *	210KW
UPS POWER MODULES	7
PHASE	3-Phase in / 3-Phase out
INPUT
NORMINAL VOLTAGE	3 x 380VAC / 400VAC / 415VAC ( 3Ph+N )
VOLTAGE RANGE	305 ~ 478VAC @ Full Load; 208 ~ 478VAC @ <70% Load
NOMINAL FREQUENCY	50 or 60Hz ( Auto-Sensing )
FREQUENCY RANGE	40Hz ~ 70Hz
INPUT POWER FACTOR	0.99 @ 100% Load, >0.98 @ 50% Load
HARMONIC DISTORTION (THDi)	<3% @ 100% Load
OUTPUT
NOMINAL VOLTAGE	3 x 380VAC / 400VAC / 415VAC ( 3Ph+N )
OUTPUT POWER FACTOR	1.0
VOLTAGE REGULATION (Steady State)	≤±1% Typical ( balanced load ); ≤±2% Typical ( unbalanced load )
NOMINAL FREQUENCY	50 or 60Hz
FREQUENCY RANGE (Synchronized)	46Hz ~ 54Hz or 56Hz ~ 64Hz
OVERLOAD CAPACITY	1 Hour for 110%, 10mins for 125%; 1min for 150%, 200ms for > 150%
HARMONIC DISTORTION	≤2% THD ( Linear Load ); ≤4% THD ( Non-Linear Load )
EFFICIENCY	Up to 96%
BATTERY CHARGER
NOMINAL VOLTAGE	+/-216V ( 12V x 36pcs )
MAXIMUM VOLTAGE	+/-240V ( 12V x 40pcs )
MINIMIUM VOLTAGE	+/-192V ( 12V x 32pcs )
FLOAT CHARGING VOLTAGE	2.25V / Cell
BOOST CHARGING VOLTAGE	2.35V / Cell
TEMPERATURE COMPENSATION	Yes
MAXIMUM CHARGING CURRENT	8A for each power module ( User-adjustable )
STATUS INDICATOR
LCD DISPLAY	Optional 10" Touch LCD Panel
COMMUNICATION
POWER MANAGEMENT SOFTWARE	Support Windows Family, Linus & MAC
INTERFACE	RS 232 / USB Port
SNMP SLOT	Yes
ENVIRONMENT
OPERATION TEMPERATURE	0 - 40℃
RELATIVE HUMIDITY	0 - 95% non-condensing
ALTITUDE	<1000m for Nominal Power
IP CLASS	IP 20
STANDARDS
SAFETY	IEC / EN 60950 - 1; IEC / EN 62040 - 1
EMC	IEC / EN 62040 - 2 Category C3

M+ 240K

MODEL	M+ 240K
TOTAL CAPACITY* (KWATTS)	240KW
UPS POWER MODULES	8
PHASE	3-Phase in / 3-phase out
INPUT
NOMINAL VOLTAGE	3 x 380VAC/400VAC/415VAC (3Ph+N)
VOLTAGE RANGE	305 ~ 478VAC @ Full load; 208 ~ 478VAC @ <70% Load
NOMINAL FREQUENCY	50 or 60Hz (Auto-Sensing)
FREQUENCY RANGE	40Hz ~ 70Hz
INPUT POWER FACTOR	>0.99 @ 100% Load , >0.98 @ 50% Load
HARMONIC DISTORTION (THDi)	< 3% @ 100% Load
OUTPUT
NOMINAL VOLTAGE	3 x 380VAC/400VAC/415VAC (3Ph+N)
OUTPUT POWER FACTOR	1.0
VOLTAGE REGULATION	≤ ±1% Typical (balanced load) ; ≤ ±2% Typical (unbalanced load)
NOMINAL FREQUENCY	50 or 60Hz
FREQUENCY RANGE (SYNCHRONIZED)	46Hz ~ 54Hz or 56Hz ~ 64Hz
OVERLOAD CAPACITY	1 Hour for 110%, 10mins for 125% ; 1min for 150%, 200ms for >150%
HARMONIC DISTORTION	≤ 2% THD (Linear Load) ; ≤ 4% THD (Non-Linear Load)
EFFICIENCY	Up to 96%
BATTERY CHARGES
NOMINAL VOLTAGE	+/-216V (12V x 36pcs)
MAXIMUM VOLTAGE	+/-240V (12V x 40pcs)
MINIMIUM VOLTAGE	+/-192V (12V x 32pcs)
FLOAT CHARGING VOLTAGE	2.25V/Cell
BOOST CHARGING VOLTAGE	2.35V/Cell
TEMPERATURE COMPENSATION	Yes
MAXIMUM CHARGING CURRENT	8A for each power module (User-adjustable)
STATUS INDICATION
LCD DISPLAY	M+Chasis - 10" Touch LCD Panel
LCD DISPLAY	M+R Chassis - 5.7" Graphic LCD Panel
COMMUNICATION
POWER MANAGEMENT SOFTWARE	Support Window Family, Linux & MAC
INTERFACE	RS 232 / USB Port
SNMP Slot	YES
ENVIRONMENT
OPERATION TEMPERATURE	0 - 40°c
RELATIVE HUMIDITY	0 - 95% non-condensing
ALTITUDE	<1000m for Nominal Power
IP CLASS	IP 20
STANDARDS
SAFETY	IEC/EN 60950-1 ; IEC/EN 62040-1
EMC	IEC/EN 62040-2 Category C3

M+ 270K

MODEL	M+ 270K
TOTAL CAPACITY* (KWATTS)	270KW
UPS POWER MODULES	9
PHASE	3-Phase in / 3-phase out
INPUT
NOMINAL VOLTAGE	3 x 380VAC/400VAC/415VAC (3Ph+N)
VOLTAGE RANGE	305 ~ 478VAC @ Full load; 208 ~ 478VAC @ <70% Load
NOMINAL FREQUENCY	50 or 60Hz (Auto-Sensing)
FREQUENCY RANGE	40Hz ~ 70Hz
INPUT POWER FACTOR	>0.99 @ 100% Load , >0.98 @ 50% Load
HARMONIC DISTORTION (THDi)	< 3% @ 100% Load
OUTPUT
NOMINAL VOLTAGE	3 x 380VAC/400VAC/415VAC (3Ph+N)
OUTPUT POWER FACTOR	1.0
VOLTAGE REGULATION	≤ ±1% Typical (balanced load) ; ≤ ±2% Typical (unbalanced load)
NOMINAL FREQUENCY	50 or 60Hz
FREQUENCY RANGE (SYNCHRONIZED)	46Hz ~ 54Hz or 56Hz ~ 64Hz
OVERLOAD CAPACITY	1 Hour for 110%, 10mins for 125% ; 1min for 150%, 200ms for >150%
HARMONIC DISTORTION	≤ 2% THD (Linear Load) ; ≤ 4% THD (Non-Linear Load)
EFFICIENCY	Up to 96%
BATTERY CHARGER
NOMINAL VOLTAGE	+/-216V (12V x 36pcs)
MAXIMUM VOLTAGE	+/-240V (12V x 40pcs)
MINIMIUM VOLTAGE	+/-192V (12V x 32pcs)
FLOAT CHARGING VOLTAGE	2.25V/Cell
BOOST CHARGING VOLTAGE	2.35V/Cell
TEMPERATURE COMPENSATION	Yes
MAXIMUM CHARGING CURREN	8A for each power module (User-adjustable)
STATUS INDICATION
LCD DISPLAY	M+Chasis - 10" Touch LCD Panel
LCD DISPLAY	M+R Chassis - 5.7" Graphic LCD Panel
COMMUNICATION
POWER MANAGEMENT SOFTWARE	Support Window Family, Linux & MAC
INTERFACE	RS 232 / USB Port
SNMP Slot	YES
ENVIRONMENT
OPERATION TEMPERATURE	0 - 40°c
RELATIVE HUMIDITY	0 - 95% non-condensing
ALTITUDE	<1000m for Nominal Power
IP CLASS	IP 20
STANDARDS
SAFETY	IEC/EN 60950-1 ; IEC/EN 62040-1
EMC	IEC/EN 62040-2 Category C3

M+ 300K

MODEL	M+ 300K
TOTAL CAPACITY *	300KW
UPS POWER MODULES	10
PHASE	3-Phase in / 3-Phase out
INPUT
NORMINAL VOLTAGE	3 x 380VAC / 400VAC / 415VAC ( 3Ph+N )
VOLTAGE RANGE	305 ~ 478VAC @ Full Load; 208 ~ 478VAC @ <70% Load
NOMINAL FREQUENCY	50 or 60Hz ( Auto-Sensing )
FREQUENCY RANGE	40Hz ~ 70Hz
INPUT POWER FACTOR	0.99 @ 100% Load, >0.98 @ 50% Load
HARMONIC DISTORTION (THDi)	<3% @ 100% Load
OUTPUT
NOMINAL VOLTAGE	3 x 380VAC / 400VAC / 415VAC ( 3Ph+N )
OUTPUT POWER FACTOR	1.0
VOLTAGE REGULATION (Steady State)	≤±1% Typical ( balanced load ); ≤±2% Typical ( unbalanced load )
NOMINAL FREQUENCY	50 or 60Hz
FREQUENCY RANGE (Synchronized)	46Hz ~ 54Hz or 56Hz ~ 64Hz
OVERLOAD CAPACITY	1 Hour for 110%, 10mins for 125%; 1min for 150%, 200ms for > 150%
HARMONIC DISTORTION	≤2% THD ( Linear Load ); ≤4% THD ( Non-Linear Load )
EFFICIENCY	Up to 96%
BATTERY CHARGER
NOMINAL VOLTAGE	+/-216V ( 12V x 36pcs )
MAXIMUM VOLTAGE	+/-240V ( 12V x 40pcs )
MINIMIUM VOLTAGE	+/-192V ( 12V x 32pcs )
FLOAT CHARGING VOLTAGE	2.25V / Cell
BOOST CHARGING VOLTAGE	2.35V / Cell
TEMPERATURE COMPENSATION	Yes
MAXIMUM CHARGING CURRENT	8A for each power module ( User-adjustable )
STATUS INDICATOR
LCD DISPLAY	Optional 10" Touch LCD Panel
COMMUNICATION
POWER MANAGEMENT SOFTWARE	Support Windows Family, Linus & MAC
INTERFACE	RS 232 / USB Port
SNMP SLOT	Yes
ENVIRONMENT
OPERATION TEMPERATURE	0 - 40℃
RELATIVE HUMIDITY	0 - 95% non-condensing
ALTITUDE	<1000m for Nominal Power
IP CLASS	IP 20
STANDARDS
SAFETY	IEC / EN 60950 - 1; IEC / EN 62040 - 1

Dimension

M+20K ~ M+200K
POWER MODULE DIMENSION
DESCRIPTION	DIMENSION ( D x W x H )mm	WEIGHT ( KG )
3P/3P 20KVA/20KW POWER MODULE	736.5 x 490 x 133 (3U)	34
CHASSIS DIMENSION
DESCRIPTION	DIMENSION ( D x W x H )mm	MAX POWER MODULE / MAX BATTERY MODULE
M+ CHASSIS DIMENSION ( D x W x H )mm	1100 x 600 x 1475 ( 30U )	Max 3 Power Module + Max 3 Battery Module
	1100 x 600 x 1475 ( 30U )	Max 6 Power Module
	1100 x 600 x 2010 ( 42U )	Max 7 + 1 Power Module ( N + 1 )
	1100 x 600 x 2010 ( 42U )	Max 4 Power Module + 5 Battery Module
	1100 x 600 x 2010 ( 42U )	Max 10 Power Module
M+ CHASSIS DIMENSION ( D x W x H )mm	1000 x 515 x 760 ( 15U )	Max 3 Power Module
M+ CHASSIS DIMENSION ( D x W x H )mm	1000 x 515 x 1475 ( 30U )	Max 3 Power Module + Max 3 Battery Module

			M+30K ~ M+300K
POWER MODULE DIMENSION
DESCRIPTION	DIMENSION ( D x W x H )mm	WEIGHT ( KG )
3P/3P 30KVA/30KW POWER MODULE	736.5 x 490 x 133 (3U)	34.5
CHASSIS DIMENSION
DESCRIPTION	DIMENSION ( D x W x H )mm	MAX POWER MODULE / MAX BATTERY MODULE
M+ CHASSIS DIMENSION ( D x W x H )mm	1100 x 600 x 1475 ( 30U )	Max 3 Power Module + Max 3 Battery Module
	1100 x 600 x 1475 ( 30U )	Max 6 Power Module
	1100 x 600 x 2010 ( 42U )	Max 7 + 1 Power Module ( N + 1 )
	1100 x 600 x 2010 ( 42U )	Max 4 Power Module + 5 Battery Module
	1100 x 600 x 2010 ( 42U )	Max 10 Power Module
M+ CHASSIS DIMENSION ( D x W x H )mm	1000 x 515 x 760 ( 15U )	Max 3 Power Module
	1000 x 515 x 1475 ( 30U )	Max 3 Power Module + Max 3 Battery Module

			WARRANTY	2 Years Warranty

Share Item :

Modular Plus Series

Downloads

Downloads

M+ 20K

M+ 40K

M+ 60K

M+ 80K

M+ 100K

M+ 120K

M+ 140K

M+ 160K

M+180K

M+ 200K

M+ 30K

M+ 60K ( 60KW )

M+ 90K

M+ 120K ( 120KW )

M+ 150K

M+ 180K

M+ 210K

M+ 240K

M+ 270K

M+ 300K

Dimension

Related Products

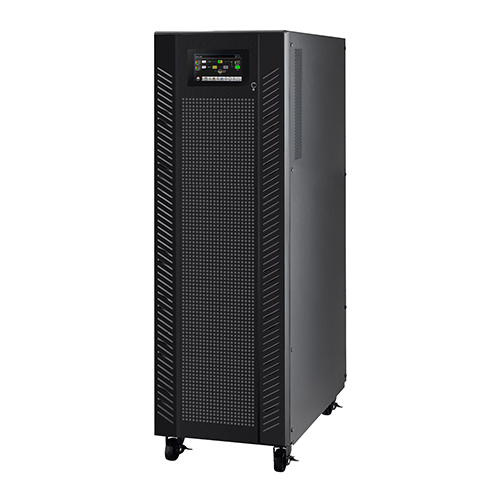

PowerBridge T3 Series

PowerBridge 9+ RT Series

PowerTank F Series

PowerCube Series

Categories

Quick Links

SOCIAL MEDIA PAGE
